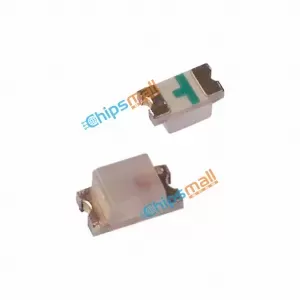

Image is for your reference only, please check specifications for details
iconCompare
icon

HSMG-C190

  • In Stock: 1100
  • Available: 2440
  • Updated: 1 hr ago

Reference Price(In US Dollars)

QtyUnit PriceExt.Price
1+US $0.19107US $0.19
10+US $0.12738US $1.27
30+US $0.09553US $2.87
100+US $0.07643US $7.64
500+US $0.07006US $35.03
1000+US $0.06369US $63.69

Do you want a lower wholesale price? Please send us an inquiry, and we will respond immediately.

Quick RFQ
  • esd
  • as
  • iso14001
  • iso9001
  • D&B

Product Parameter

  • Manufacturer
    Broadcom Inc.
  • Manufacturer's Part #
    HSMG-C190
  • Categories
    Uncategorized
  • Sub-Categories
    Unclassified
  • Series
    -
  • ECCN
    EAR99
  • Color
    Green
  • Depth
    800μm
  • Mount
    Surface Mount
  • Shape
    RECTANGULAR
  • Height
    1.5mm
  • Frequency
    400kHz
  • Interface
    Serial
  • Lead Free
    Lead Free
  • Lens Size
    1.00mmx0.80mm
  • Packaging
    Tape & Reel (TR)
  • Published
    2003
  • Lens Color
    White
  • Lens Style
    Rectangle with Flat Top
  • Part Status
    Active
  • Subcategory
    Visible LEDs
  • Power Rating
    52mW
  • REACH Status
    REACH Unaffected
  • Configuration
    Standard
  • Mounting Type
    Surface Mount
  • Viewing Angle
    170°
  • Number of Pins
    2
  • Package / Case
    0603 (1608 Metric)
  • Packing Method
    TAPE AND REEL 7"
  • Contact Plating
    Gold
  • Forward Current
    20mA
  • Reverse Voltage
    5V
  • Base Part Number
    HSMG-C190
  • Size / Dimension
    1.60mm Lx0.80mm W
  • Factory Lead Time
    9 Weeks
  • Lens Transparency
    Diffused
  • Power Dissipation
    52mW
  • Wavelength - Peak
    570nm
  • Additional Feature
    SUPPORTS INFRARED
  • Case Code (Metric)
    1608
  • Luminous Intensity
    15 mcd
  • Max Supply Voltage
    5.5V
  • Min Supply Voltage
    1.7V
  • Number of Elements
    1
  • Number of Functions
    1
  • Radiation Hardening
    No
  • Case Code (Imperial)
    0603
  • Max Power Dissipation
    52mW
  • Wavelength - Dominant
    572nm
  • Nominal Supply Current
    2mA
  • Number of Terminations
    2
  • Max Operating Temperature
    85°C
  • Min Operating Temperature
    -40°C
  • Optoelectronic Device Type
    SINGLE COLOR LED
  • Voltage - Forward (Vf) (Typ)
    2.2V

Environmental & Export Classifications

  • HTSUS
    8541.41.0000
  • ECCN Code
    EAR99
  • REACH SVHC
    No SVHC
  • RoHS Status
    ROHS3 Compliant
  • JESD-609 Code
    e4
  • Moisture Sensitivity Level (MSL)
    2A (4 Weeks)
