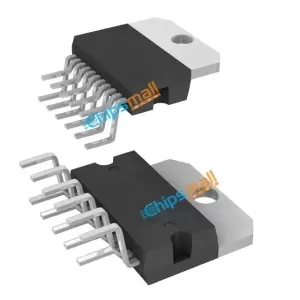

Image is for your reference only, please check specifications for details
Compare
TDA7269A
- Manufacturer's Part No.:TDA7269A
- Manufacturer:
- Categories:
- Sub-Categories:
- Series:-
- Description:IC AMP AUDIO PWR 14W MULTIWATT11
- Datasheet:
- Quantity:RFQAdd to RFQ List
- Payment:
- Delivery:
- In Stock: 30000
- Available: 32813
Reference Price(In US Dollars)
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1+ | US $1.91310 | US $1.91 |
| 10+ | US $1.27540 | US $12.75 |
| 30+ | US $0.95655 | US $28.70 |
| 100+ | US $0.76524 | US $76.52 |
| 500+ | US $0.70147 | US $350.74 |
| 1000+ | US $0.63770 | US $637.70 |
Do you want a lower wholesale price? Please send us an inquiry, and we will respond immediately.
Quick RFQ
Product Parameter
- ManufacturerSTMicroelectronics
- Manufacturer's Part No.TDA7269A
- CategoriesIntegrated Circuits (ICs)
- Sub-CategoriesLinear - Amplifiers - Audio
- Series-
- ECCNEAR99
- Gain80 dB
- TypeClass AB
- MountThrough Hole
- Width5mm
- Height17.75mm
- Length19.6mm
- FeatureDepop, Mute, Short-Circuit and Thermal Protection, Standby
- Bandwidth22 kHz
- Lead FreeLead Free
- PackagingTube
- Pin Count11
- TechnologyBIPOLAR
- Output Type2-Channel (Stereo)
- Part StatusActive
- SubcategoryAudio/Video Amplifiers
- Supply TypeDual
- Output Power14W
- REACH StatusREACH Unaffected
- Voltage Gain80dB
- Mounting TypeThrough Hole
- Load Impedance8Ohm
- Number of Pins11
- Package / CaseMultiwatt-11 (Vertical, Bent and Staggered Leads)
- Terminal Pitch1.7mm
- Terminal FinishMatte Tin (Sn) - annealed
- Base Part NumberTDA7269
- Lifecycle StatusACTIVE (Last Updated: 7 months ago)
- Max Output Power14W
- Voltage - Supply±5V~20V
- Factory Lead Time6 Weeks
- Power Dissipation40W
- Quiescent Current60mA
- Terminal PositionZIG-ZAG
- Input Bias Current500nA
- Number of Channels2
- Dual Supply Voltage18V
- Harmonic Distortion10%
- Number of Functions1
- Radiation HardeningNo
- Max Power Dissipation40W
- Operating Temperature0°C~70°C TA
- Nominal Supply Current3A
- Number of Terminations11
- Max Dual Supply Voltage20V
- Min Dual Supply Voltage5V
- Input Offset Voltage (Vos)25mV
- Max Output Power x Channels @ Load14W x 2 @ 8 Ω
- Power Supply Rejection Ratio (PSRR)60dB
Environmental & Export Classifications
- HTSUS8542.33.0001
- ECCN CodeEAR99
- REACH SVHCNo SVHC
- RoHS StatusROHS3 Compliant
- JESD-609 Codee3
- Moisture Sensitivity Level (MSL)1 (Unlimited)
